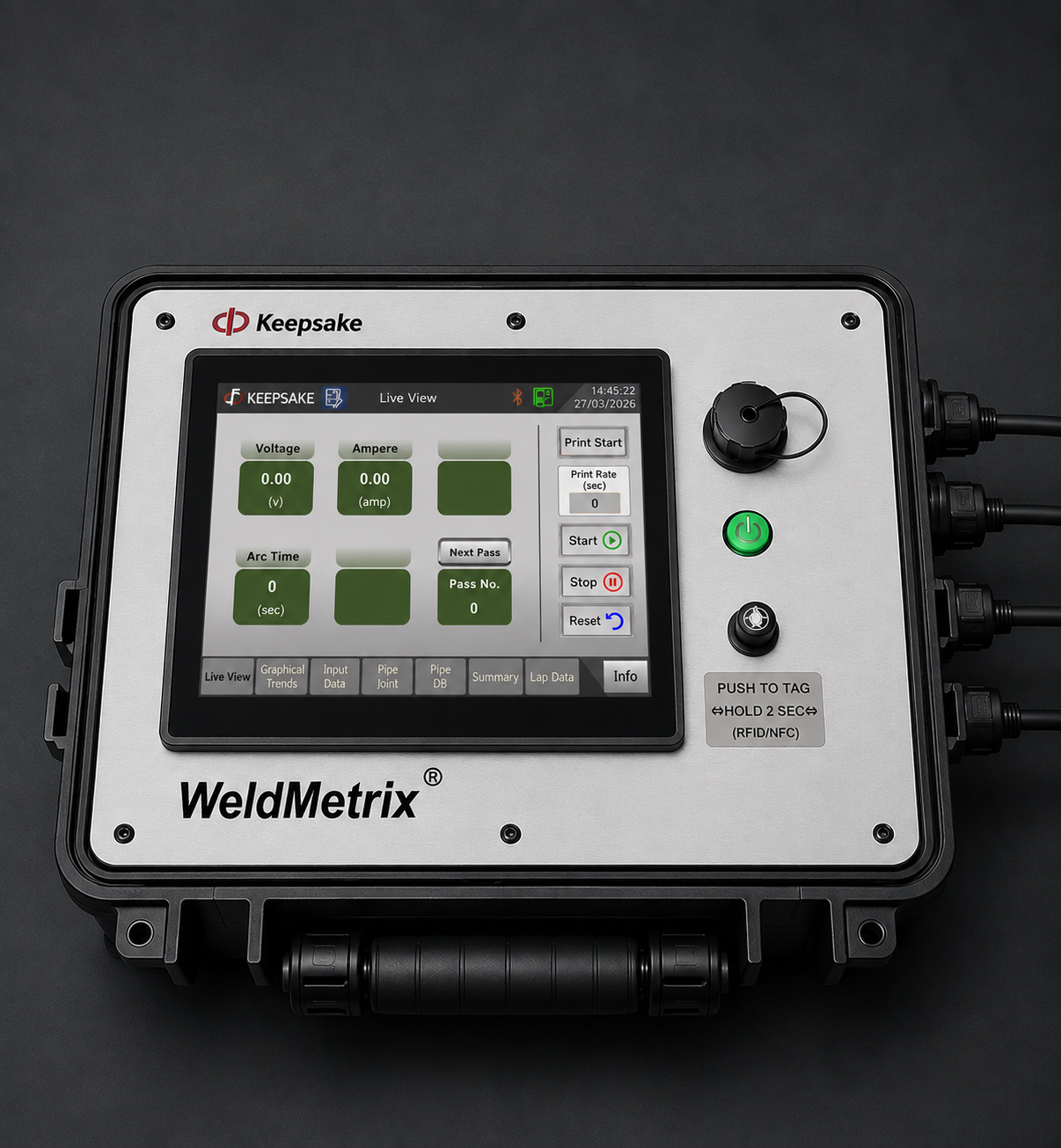

WeldMetrix® — the universal logger for any weld power source.
Real-time monitoring of process parameters with high-speed waveform capture, automatic CSV logging, custom reports and Industry 4.0 connectivity over Wi-Fi and Bluetooth.
A logger that doesn't need a clean room.
The device drops onto any cell in the shop. Plug into the power source, hang the sensors, set the WPS, and it starts logging. No proprietary handshake. No brand lock-in.
- IP54
- Casing
- 12
- Channels
- 1000 values/sec
- Sampling Frequency
One logger. Three layers of capability.
Hardware
- Universal logger — any weld power source
- HF insulated, process independent (MIG/TIG/SMAW/SAW)
- IP54 sealed casing · Carry casing option

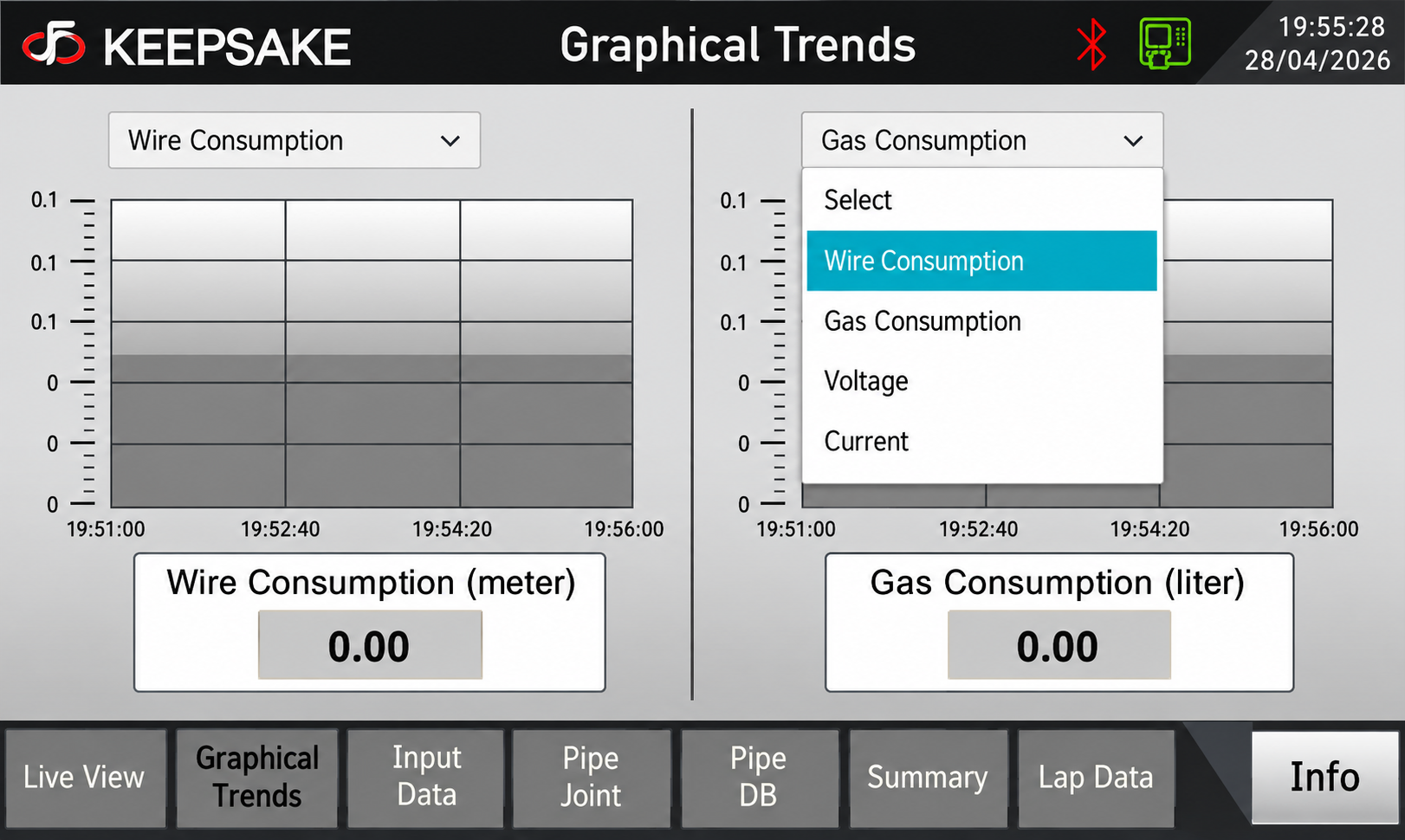

- On-device touchscreen HMI
- Thermal mini printer for online weld and summary printing
- Connectivity: LAN, USB, WiFi, Bluetooth
Software
- Offline desktop software (Windows)
- Automatic parameter storage as CSV with digital signature
- Backup of files to USB
- Real-time parameter monitoring on PC over LAN

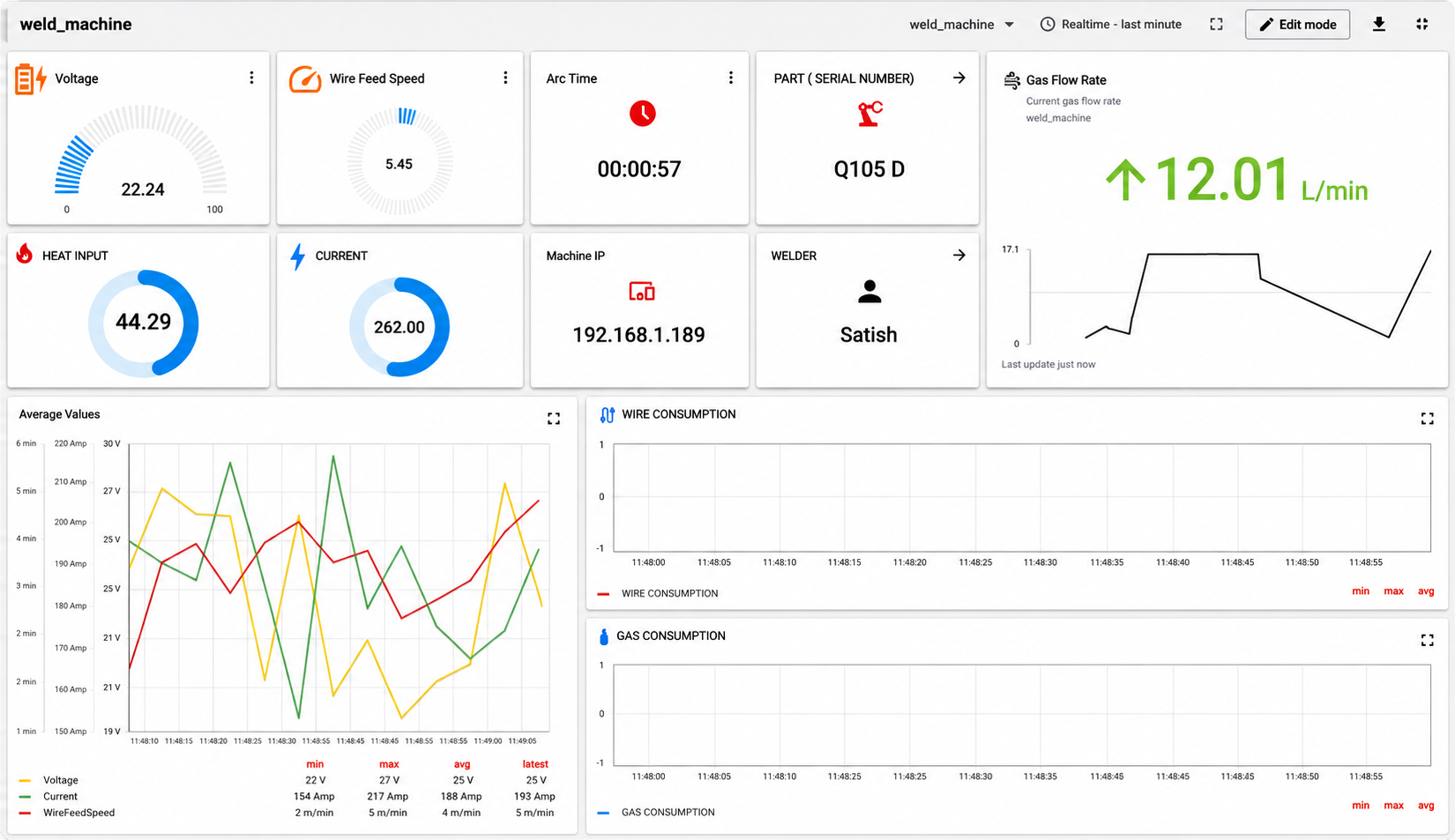

- Online dashboard for plant-wide visibility
- OEE cost calculations

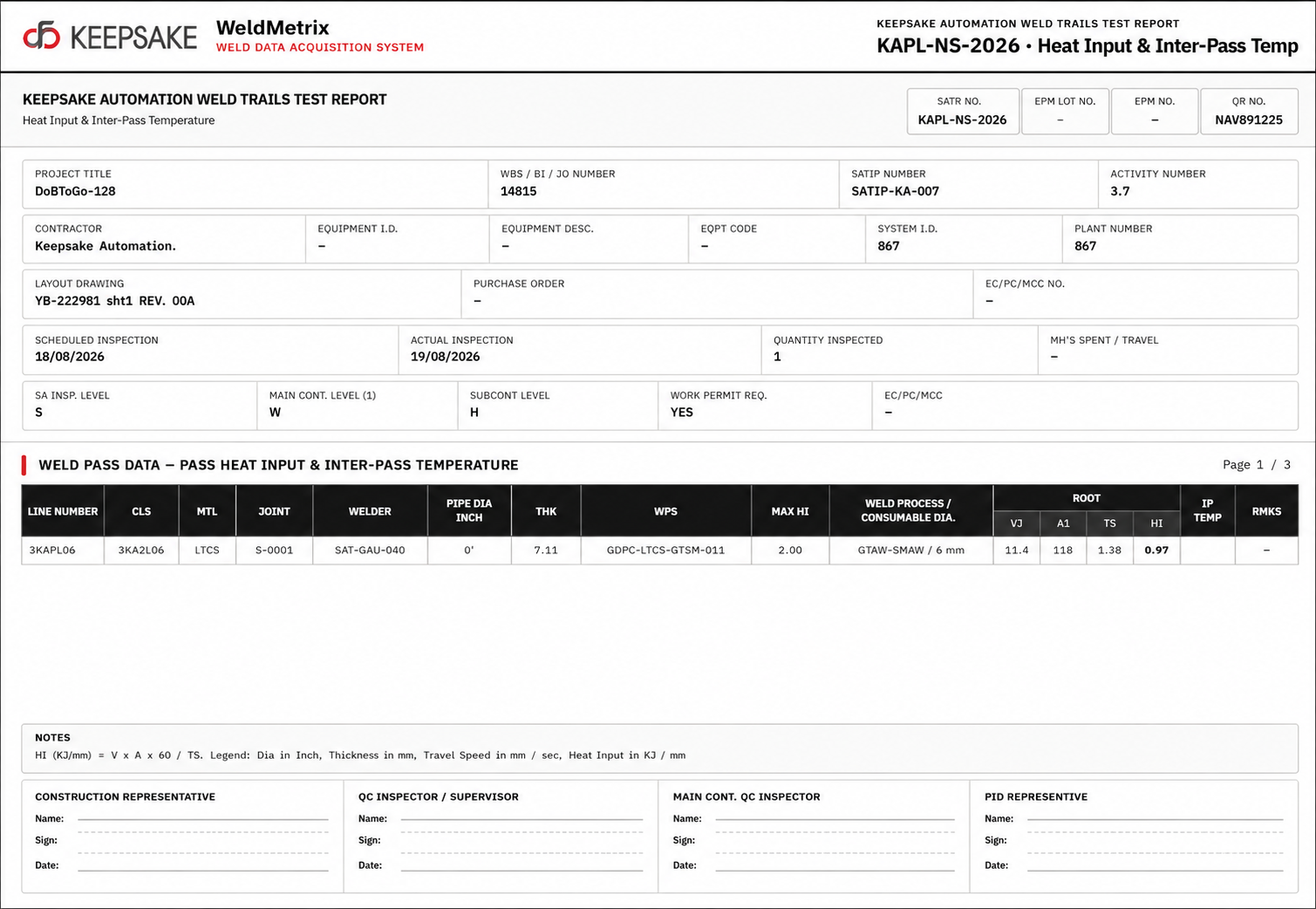

Reports & analytics
- Custom report templates
- WPS comparison built in
- Welder performance reports
- Weld traceability across batches
Extend it for the work in front of you.
The base unit ships with voltage and current. Everything else is a choice you make based on what your QA file needs to prove.
Gas flow sensor
Inline · Ar / CO₂ / ArgoShield
Temperature sensor
0–600 °C · Up to 1000 °C optional
2D Barcode scanner
Part tracking through batch production
Weld speed measurement
0-2000 mm/min · Can be attached to manual torch too
RFID welder punching
Identify operator
Custom sensor integration
- ▸Configurable WPS alarms
- ▸RFID for welder punching
- ▸On-device touchscreen display
- ▸Custom sensor integration
- ▸IP67 chassis variant
- ▸Barcode Scanner
