Weldmetrix

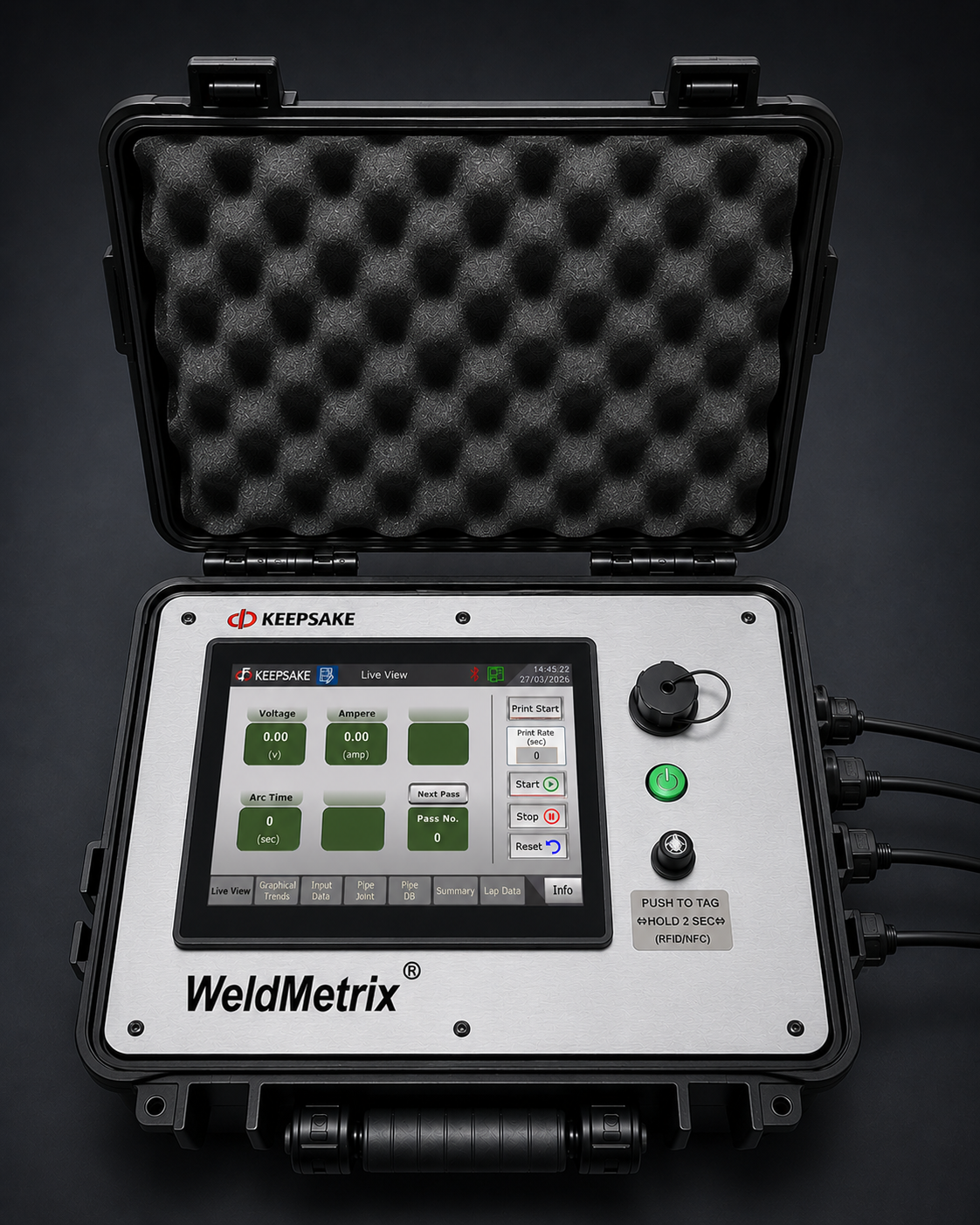

WeldMetrix® is a real-time monitor for process parameters. It saves the data along with generating and comparing reports. IOT 4.0 enabled with Wi-Fi and Bluetooth connectivity.

Welding Machine

Use on any make welding machine

configurable design

User configurable design

Window Control System

Windows based control system

High speed waveform

High speed version for viewing actual waveform

Datalogging and reporting

Datalogging and reporting

Industry connectivity

Industry 4.0 connectivity

WELD DATALOGGER SPECIFICATIONS

LOGGER CONFIGURATIONS

0 – 100v, AC / DC

500 amps, 1000 amps

1.2mm, 2.4mm – 5mm

Ar, CO2, ArgoShield

0 – 400 degree Celsius. Multiple sensor options available.

Handheld and wall mount sensor as per need

OFFLINE / ONLINE version

HMI for live view and operation

Thermal mini printer for online and summary printing

  • Gas flow Sensor
  • Temperature sensor (0 –400c, 0 –1000c, 50 –350c)
  • Humidity sensor
  • Wire Feed Speed attachment (0.8mm –5mm wire diameters)
    • A separate addon is needed for aluminum / softer wires

Connectivity: USB / LAN

  • IP64 Casing
  • IP20 Carry Casing

Weldmetrix Advantages

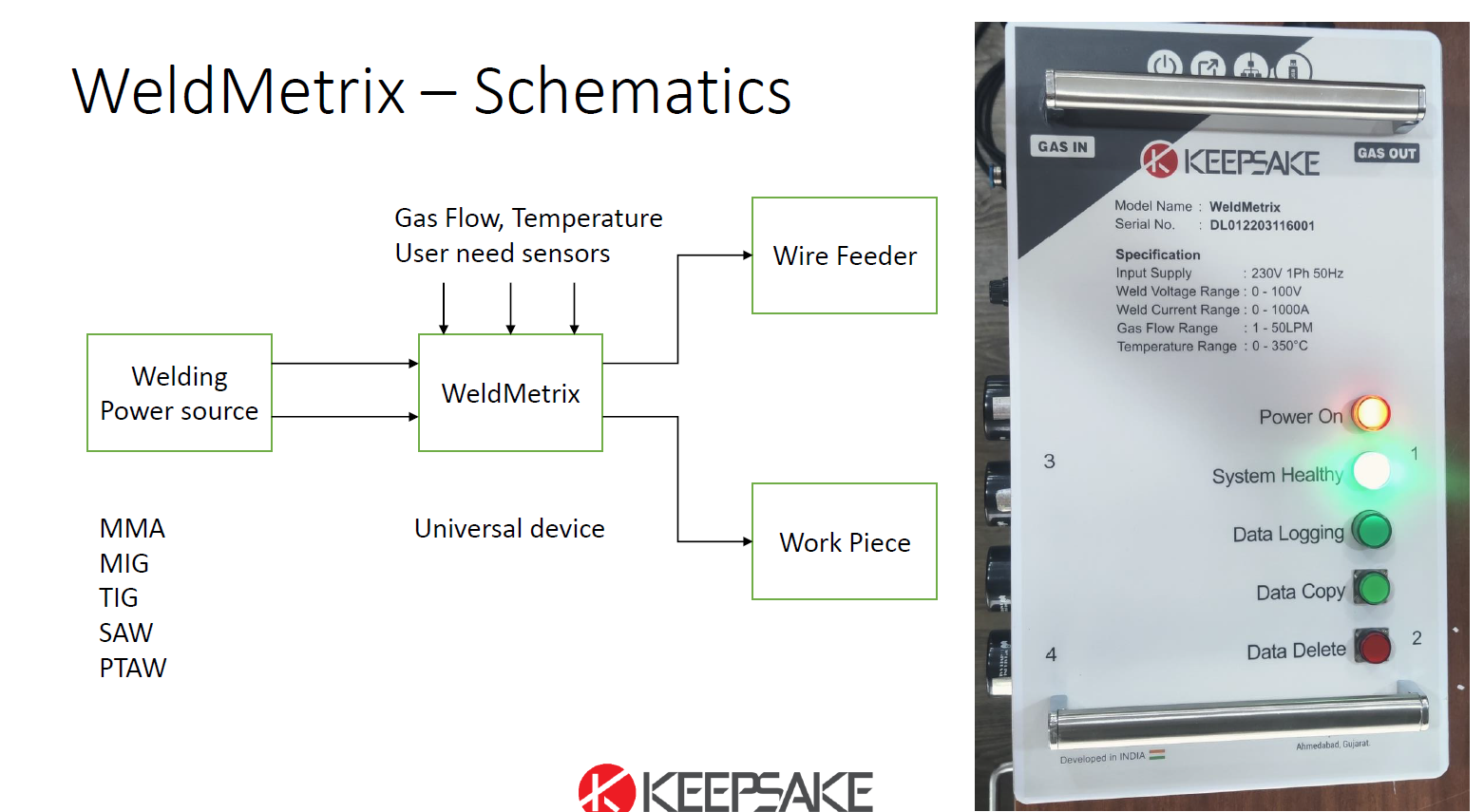

  • Universal logger. Works with any weld power source

  • Configurable as per user need

  • Process independent

  • HF insulated

  • Custom report

  • LAN / USB Connectivity

  • Offline desktop software

  • Online dashboard feature

  • WPS comparison

  • Production monitoring

  • Welder performance reports

  • Bead to parameter mapping

  • Weld traceability

  • Report Generation

  • OEE calculations

  • Cost calculations

Weldmetrix Options

Choose from multiple temperature sensor from various brands

High speed version to view actual waveforms

Configurable Alarms

RFID for welder punching

On device display, touch screen

Custom sensor integration

USB logging feature

IP67 version available

“The goal is to turn data into information, and information into insight.”
Keepsake

Software Options

  • automatic parameter storage in CSV file
  • Backup Of Files In USB
  • Realtime Parameter Monitoring On PC. Connectivity Through LAN Port
  • OEE Calculator
  • Trends Analysis
  • Cloud Storage And Dashboar
